• Leading European filament manufacturer
  • 80+ filaments in portfolio
  • Fast delivery
  • Bambu Lab compatible ReFill
Visit our stores for the US and CA
Filament Spectrum PET CF15 1.75mm 0.75kg
Filament Spectrum PET CF15 1.75mm 0.75kg
Filament Spectrum PET CF15 1.75mm 0.75kg
Filament Spectrum PET CF15 1.75mm 0.75kg
Filament Spectrum PET CF15 1.75mm 0.75kg
Filament Spectrum PET CF15 1.75mm 0.75kg

Filament Spectrum PET CF15 1.75mm 0.75kg

EAN:
5903175653178
SKU:
80587
  • Spectrum PET CF15 is a black through-dyed material based on polyethylene terephthalate. It is the easiest-to-print material filled with carbon fibre on the market.

Filament Spectrum PET CF15 1.75mm 0.75kg

89,90 €
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
of
You can also buy using:
large quantity in stock
large quantity in stock
14 days for easy returns
Safe shopping
Save by buying more rolls
  • 4+ rolls -10%
  • 6+ rolls -20%
Promotion details
Save by buying more rolls
  • 4+ rolls -10%
  • 6+ rolls -20%
Promotion details
Save by buying more rolls
  • 4+ rolls -8%
  • 6+ rolls -12%
Promotion details
Save by buying more rolls
  • 4+ rolls -9%
  • 6+ rolls -15%
Promotion details
Description

Filament Spectrum PET CF15

Very strong and rigid

Spectrum PET CF15 is a black through-dyed material based on polyethylene terephthalate. It is the easiest-to-print material filled with carbon fibre on the market. It presents no retraction issues and does not require a heating chamber. It demonstrates a perfect surface finish directly from the printer, thus reducing the need for further treatments.
Spectrum PET CF15 is compatible with support materials such as HIPS-X and can be used to print very strong and rigid items. It features a low impact of moisture and temperature on dimensions. PET CF15 filament may undergo additional treatment to improve its mechanical properties.
To attain the very attractive properties of Spectrum PET CF15, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.

Tip: Due to the essential content of shredded carbon fire, it is recommended to use nozzles with diameters exceeding the standard value of 0.4mm. The presence of carbon fibre may also cause the wear of brass nozzle, thus it is recommended to use stainless steel nozzles for prolonged application of Spectrum PET CF15.

Key features:

  • low processing (linear) shrinkage of 0.1%
  • high temperature up to 125°C for short-time operation
  • a relatively high resistance to thermal ageing
  • high Z-strength
  • high hardness, stiffness and creep resistance of printed elements
  • chemical resistance to lubricants and oils
  • good tribological properties, including dry friction conditions such as in slide bearings
  • very robust interlayer lamination
  • excellent impact strength
  • water absorption below 0.3% (23°C / 24h)

Applications:

  • automotive industry
  • components of textile
  • office machines
  • precision apparatus
  • engineering
  • end-use parts
  • tooling
  • functional prototyping

Packaging

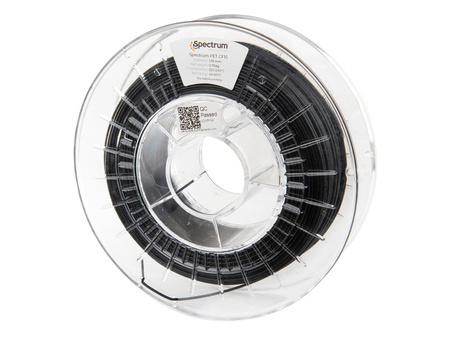

Filament wound on a transparent PC spool. The spool contains information about the type of material, diameter and recommended printing temperature. Each reel is packed in aluminium vacuum bag with ZIP lock with a silica gel inside.

Due to the high carbon fiber content, it is recommended to use nozzles with a diameter exceeding 0.4 mm.
The presence of carbon fiber can also cause wear of the brass nozzle, so it is recommended to use stainless steel nozzles for long-term use of PET CF15 filament.

To download

Check the technical data sheet and product data sheet

Specification
General information
Symbol
5903175653178
EAN
5903175653178
SKU
80587
Series
Specification
Product line
PET CF15
System
Spool
AMS compatibility
Yes
Color
Black
Surface finish
matte, carbon appearance
Technical data
Diameter
1.75mm
Density
1,4 g/cm3
Net weight
750g
Temperature resistance
Service temp. (200h) - 125°C
RoHS & REACH
Yes
How to print?
Nozzle temperature
245-270°C
Heated bed temperature
50-70°C
Recommended printing speed
30-200 mm/s
Cooling fan
0-30%
Closed chamber
Not necessary
Filament dryer
Yes
Ruby or hardened nozzle
Yes
Adhesive
Not required (for increased adhesion or to avoid warping: Dimafix, 3DLac, Magigoo)
Spool dimensions
Content [g]Width [mm]Outer diameter [mm]Inner diameter [mm]Weight empty [g]MaterialSpool color
250 44 140 52 120 Plastic Transparent
250 44 140 52 80 Cardboard -
500 55 200 52 240 Plastic Transparent
750 55 200 52 240 Plastic Transparent
1000 67 200 52 260 Plastic Transparent
1000 67 200 52 180 Cardboard -
2000 100 300 52 600 Plastic Black
2000 100 300 52 420 Cardboard -
4500 100 350 52 780 Plastic Black
8000 167 355 36 1020 Plastic Black

Each spool is sealed. We recommend storing filaments in a cool (15-25°C) and dry place.
