Filament Spectrum PCTG GF10 1.75mm NATURAL 0.5kg
Filament Spectrum PCTG GF10 1.75mm NATURAL 0.5kg
Filament Spectrum PCTG GF10 1.75mm NATURAL 0.5kg
Filament Spectrum PCTG GF10 1.75mm NATURAL 0.5kg

Filament Spectrum PCTG GF10 1.75mm NATURAL 0.5kg

  • Spectrum PCTG GF10 is a technical filament with high stiffness and hardness.
29,90 €
incl. VAT / pcs.
24.92
without VAT
Express checkout 1-Click(without registration)
14 days for easy returns
Safe shopping

Spectrum PCTG GF10 filament

Durability of PCTG enhanced by the advantages of glass fibre

The potential of high-impact PCTG inspired us to develop another composite based on this copolyester – Spectrum PCTG GF10. The use of glass fibre filling has resulted in a high-strength filament with an intriguingly matt surface.

When creating the composition, we paid particular attention to reducing the abrasiveness of the glass fibres, which is typical for this type of filling. For this reason, we used functionalised glass fibres with a less aggressive geometry, reducing degradation of the printer nozzle.

Spectrum PCTG GF10 is a technical filament with high stiffness and hardness. Thanks to its extremely high interlayer adhesion and low shrinkage, it allows even intermediate users to execute large prints.

In addition, the glass fibres give the prints a distinctive texture, which, in addition to its undoubted aesthetic qualities, also translates into increased usability. Models made from Spectrum PCTG GF10 can be used wherever increased adhesion, increased durability against cyclic load and chemical resistance are important.

Key features:

  • heat deflection temperature HDT - 76°C
  • high stiffness and tensile strength
  • good impact resistance
  • high surface quality after printing
  • good corrosion resistance
  • chemical resistance
  • good chemical resistance and electrical and thermal insulation,
  • high dimensional accuracy of the printed elements

Applications:

  • visual and functional prototyping
  • manufacture of safety devices, housings and covers
  • electrical safety components
  • conceptual models
  • manufacture of parts exposed to chemical agents
  • manufacturing tools and equipment

Packaging

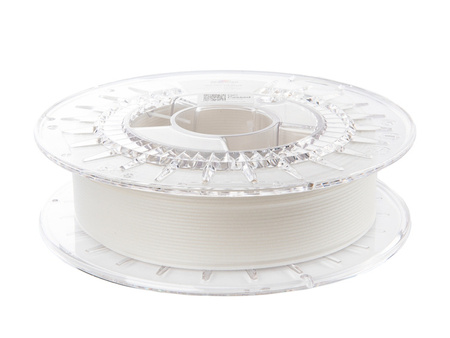

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.

Producer code
5903175655172
Symbol
5903175655172
Series
General information
Material group
PCTG
Color
White
Spectrum color name
Natural
Diameter
1.75mm
Dimensional tolerance
± 0.03mm
Verify your spool - preview of the diameter course on the entire length of the spool
YES
Density
1.31 g/cm³
Net weight
500g
Total weight
900g
Recommended print settings
Printing temperature
250-270°C
Heated bed
necessary
Heated bed temperature
>50°C
Printing speed
30-80mm/s
Closed chamber
Not necessary
Dimensions of the spool
Outer diameter
200mm
Width
55mm
Inner diameter
52mm
Empty spool weight
± 220g
